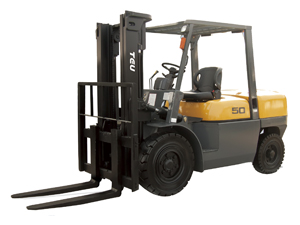

FD50TS Diesel Forklift Truck
Description
TEU has fully upgraded and redesigned 5 ton diesel forklift truck for easier access, greater comfort, improved maneuverability, great safety and longer durability. Due to our outstanding technological expertise and strengths, this diesel powered forklift truck can achieves optimum performance. It is designed to meet the operation requirements of high productivity indoor materials. Famous for clean power, excellent commensurability and superior performance, 5 ton diesel forklift truck is often used for lifting and stacking cargoes. It is configured with diesel engine that enjoys the advantages of good power performance, strong overload ability, powerful long-time working capacity and low fuel charge.
SPECIFICATION | Item | FD45T | FD50TS | FD50TF | |
Load capacity | kg | 4500 | 5000 | 5000 | |
Load center | mm | 600 | 500 | 600 | |
DIMENSIONS | Max. lifting height | mm | 3000 | 3000 | 3000 |
Free lift | mm | 140 | 140 | 140 | |
Fork size | mm | 1220*150*50 | 1070*150*50 | 1220*150*60 | |
Overall length(without fork) | mm | 3100 | 3100 | 3183 | |
Total width | mm | 1485 | 1485 | 1485 | |
Mast height (fork lowering) | mm | 2300 | 2300 | 2390 | |
Overall height fork raised | mm | 4190 | 4190 | 4295 | |
Height to head guard | mm | 2270 | 2270 | 2270 | |
Truck weight | kg | 7230 | 7230 | 7830 | |
TIRES | front/rear |
|
2/2 | 2/2 | 2/2 |
front axle |
|
300-15-18PR | 300-15-18PR | 300-15-18PR | |
rear axle |
|
7.00-12-12PR | 7.00-12-12PR | 7.00-12-12PR | |
ENGINE | Model |
|
Mitsubishi S6S | Chinese 4108 | Mitsubishi S6S |
Rated power | kw/rpm | 52/2300 | 57/2200 | 52/2300 | |
Rated torque | Nm/rpm | 248/1700 | 297/1600 | 248/1700 | |
Number of cylinders |
|
6 | 4 | 6 | |
Dislacement | L | 4.996 | 4.578 | 4.996 |
Optional Engines
FD45T,FD50TS,FD50TF: Chinese 4108,Mitsubishi S6S
- Characteristics of 5 ton Diesel Forklift Truck
- Our company has a strict quality management system. We evaluate suppliers regularly and conduct internal audits and management reviews regularly to ensure the effective operation of the system.
- 4T diesel powered forklift truck can match a variety of diesel engines. This provides a lot of choices for our customers.
- Built-in tilt cylinder makes the 5 ton diesel forklift truck have much wider driving space.
- TEU cooperates with colleges and universities to attract outstanding talents of Chinese university graduates and to enlarge R & D strength.
- This diesel powered forklift truck adopts a wide view mast. Integrated operating system contributes to simple operation.
- The accessories are highly universal, easy and quick to maintain, which can lower cost, save time and improve efficiency.
- The 5 ton diesel forklift truck employs top-level engine for overall efficiency and performance. The high quality engine is also eco-friendly.
Main Parts
5T diesel powered forklift truck is mainly made up of engine (a power unit that converts heat energy into mechanical energy), transmission, operating control device (steering mechanism and brake system), working device, hydraulic system and electric system.
Attentions
1. Customers need to fully know the working environment, the maximum load and the maximum lifting height of the 5 ton diesel forklift truck and then choose appropriate models and configurations.
2. Customers need to pay attention to daily maintenance of this diesel powered forklift truck.
Packaging and Transportation
Shipping By Container.
TEU is a professional manufacturer and supplier of 5 ton diesel forklift trucks in China. Our company is also engaged in producing 1.5-5T gasoline forklift truck and 1.5-5T electric forklift. Till now, we have established exclusive selling agencies in Australia, Russia, the United Kingdom and Northern Ireland, Korea and Iran. Our diesel powered forklift trucks have been sold to Southeast Asia, South America, Africa and Europe.
