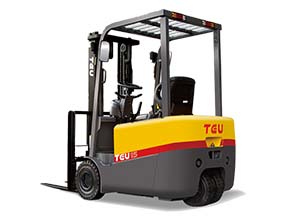

1.5-2.0T Electric Three-wheel Forklift Truck
Description
TEU can produce 1.5-2.0T electric three-wheel forklift trucks for customers.

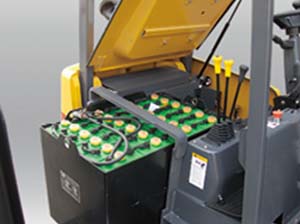

The electric forklift Powered by storage battery, the electric forklift truck
is suitable for areas that have high requirements on environmental protection,
such as indoor place and warehouses. This three-wheel forklift truck is non-polluting
and energy-saving. It adopts drive system with independent design, low noise
and high efficiency. This 3 wheel electric truck is also equipped with imported
motor and electric control units to ensure high reliability of its hydraulic
parts. Our company can also customize various electric forklift trucks according
to customers' requirements. Lemon yellow or silver color is available for
customers.
Advantages
We are certified by ISO9000 system, and our electric forklift trucks have
obtained CE certificate. We continuously update our technology to manufacture
superior products. Excellent and timely after-sales service is offered to
optimize customer experience.
Performance
1. This three-wheel forklift truck enjoys compact structure, and it is easy
and convenient to operate.

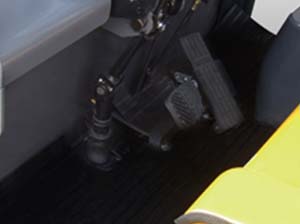

2. This 3 wheel electric truck is equipped with pedals and suspending seat,
which can reduce operators' fatigue and make them feel comfortable.
3. Three operation modes are available for users to choose from.
4. This electric forklift truck can operate around 7 hours if sufficiently
charged.
5. AC motor and AC controller with excellent performance.
6. 24-hour after-sales service and a full set of accessories are available.
Components

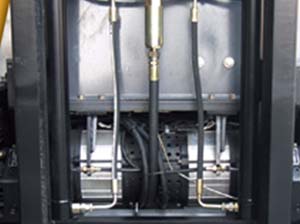

Power unit, transmission gear, power steering system, working device, hydraulic
system and electric system.
Notes
This electric forklift truck is ideal for indoor transportation applications.
Operating Instructions
1. Only drivers with appropriate training and driver license can drive this
three-wheel forklift truck.
2. Check the control and alarming mechanism, and any damage or defect shall
be repaired before driving.
3. Cargoes lifted shall not exceed the specified load. The cargo fork shall
entirely get in the cargo. Put the cargo evenly on the fork, and using a single
fork to get the cargo is not allowed.
4. Smoothly start this 3 wheel electric truck, turn the direction, brake and
stop the lift truck. Slow down when driving on wet or slippery road or turning
direction.
5. When driving this electric forklift truck loaded with material, we should
ensure that the cargoes are lowered.
Maintenance
1. Daily maintenance is necessary after each shift of work.
2. Level 1 technical maintenance after 100 accumulated working hours, approximately
every 2 weeks.
3. Level 2 technical maintenance after 500 accumulated working hours, approximately
every quarter.
| Specification | 1 | Model | FTB15 | FTB18 | FTB20 | |||
| 2 | Load capacity | kg | 1500 | 1800 | 2000 | |||
| 3 | Load Center | mm | 500 | 500 | 500 | |||
| 4 | Power Supply | Battery | Battery | Battery | ||||
| 5 | Operator type | Driver/seat | Driver/seat | Driver/seat | ||||
| 6 | Tire type | front/rear | Solid | Solid | Solid | |||
| 7 | Wheels(X=driven) | front/rear | 2X/2 | 2X/2 | 2X/2 | |||
| DIMENSIONS | 8 | Max.lifting height | mm | 3000 | 3000 | 3000 | ||
| 9 | Free lift | mm | 110 | 110 | 110 | |||
| 10 | Fork size(L*W*T) | mm | 920 × 100 × 35 | 920 × 100 × 35 | 1070 × 122 × 40 | |||
| 11 | Length(without fork) | mm | 1785 | 1895 | 1960 | |||
| 12 | Width | mm | 1054 | 1054 | 1100 | |||
| Weights | 13 | Weight | with standard battery | kg | 2960 | 3080 | 3450 | |
| Chassis & Wheels | 14 | Tires | Number | front/rear | 2/2 | 2/2 | 2/2 | |
| 15 | Size | front | 18×7-8 | 18×7-8 | 200/50-10 | |||
| rear | 15×4.5-8 | 15×4.5-8 | 140/55-9 | |||||
