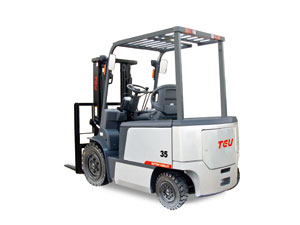

3.5T Electric Forklift
Description
3.5 ton electric forklift uses storage battery to provide power. This forklift can adapt to various working conditions and therefore makes the operation safer and more reliable. This electric forklift truck has non-polluting and energy-saving advantages. It adopts drive system with independent design, low noise and high efficiency. We also select imported motor and electric control units to ensure high reliability of hydraulic parts. The lemon yellow type and silver 3.5 ton electric forklift are available for customers. TEU can customize different types of electric forklift trucks according to customers' requirements.
| SPECIFICATION | Item | FB15 | FB20 | FB25 | FB30 | FB35 | FB40 | |
| Load capacity | kg | 1500 | 2000 | 2500 | 3000 | 3500 | 4000 | |
| Load center | mm | 500 | 500 | 500 | 500 | 500 | 500 | |
| DIMENSIONS | Max. lifting height(VM300) | mm | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
| Turning raduis(outside) | mm | 1780 | 1980 | 2000 | 2140 | 2200 | 2450 | |
| Overall length(without fork) | mm | 1955 | 2245 | 2285 | 2510 | 2560 | 2810 | |
| Total width | mm | 1070 | 1150 | 1150 | 1225 | 1225 | 1390 | |
| Mast height (fork lowering) | mm | 1995 | 1995 | 1995 | 2075 | 2075 | 2150 | |
| Height to head guard | mm | 2100 | 2145 | 2145 | 2190 | 2190 | 2425 | |
| Fork size (L×W×T) | mm | 920*100*35 | 1070*122*40 | 1070*125*45 | 1070*122*50 | 1070*150*50 | ||
| Tilt range(forward/backward) | deg | 6/12 | 6/12 | 6/12 | 6/12 | 6/12 | 6/12 | |
| Truck weight(with standard battery) | kg | 2690 | 3440 | 3820 | 4660 | 4960 | 5260 | |
| TIRES | front/rear |
|
2/2 | 2/2 | 2/2 | 2/2 | 2/2 | 2/2 |
| front axle |
|
6.00-9-10-10PR | 21*8-9-16PR | 28*9-15-12PR | 28*9-15-14PR | 250-15-16PR | ||
| rear axle |
|
16*6-8-10PR | 18*7-8-14PR | 18*7-8-14PR | 18*7-8 | 18×7-8 | ||
| DRIVE LINE | Battery | V/AH | 48/400 | 48/450 | 48/565 | 72/480 | 72V-560 | 80V-550 |
| Drive motor | kw/60min | 8 | 8 | 8 | 11 | 11 | 11 | |
| Hydraulic motor | kw/5min | 8.2 | 8.6 | 8.6 | 10 | 10 | 13 | |
| Control type |
|
Driving AC control type , lifting DC control type | ||||||
- Advantages
- Our steering wheels have ample adjustments to suit each operator.
- Back mirror is of wide vision and keeps safety while working.
- Our 3.5 ton electric forklifts have gained ISO9000 certification and CE certification.
- Self-diagnose and high accuracy sensor reminds operators for regular service of electric forklift trucks.
- TEU owns a technical development team who pursuits the best cost-effective products and provides high quality and timely service.
- Performance of 3.5 Ton Electric Forklift
- The body structure is compact. This forklift is simple and convenient to manipulate.
- TEU electric forklift trucks have adequate power. After each charge, they can be operated continuously for seven hours.
- The getting-on pedal and suspending seat can reduce drivers' fatigue and make them feel more comfortable.
- 3.5 ton electric forklift can be operated flexibly. There are three converting modes that can provide support for skilled drivers.
- Our company provides 24 hours after-sales service and a full range of accessories for electric forklift trucks.
- This counterbalance forklift truck is installed with AC walking controller and AC motor that own good performance.
Main Parts
3.5 ton electric forklift is made up of power unit, transmission, steering device, working device, hydraulic system and brake device.
- Attentions
- This electric forklift truck is suitable for indoor logistics transport.
- Drivers who have been trained and hold driving licenses can drive this forklift.
- Stable starting, steering, driving, braking and stopping are quite necessary. When we drive it on wet or slippery road, we need to slow down while steering.
- Check each control and alarm device before driving the 3.5 ton electric forklift truck. If there is damage or defect, it must be operated after repair.
- Material handling should not exceed the specified load. The pallet fork should insert below the cargoes and make cargoes distribute evenly on the fork. It is prohibited to use a single fork tip to pick the cargoes.
- When the 3.5 ton electric forklift loaded with material is driving, we should ensure that the cargoes are lowered and the door frame is inclined to the rear.
Packaging and Transportation
Shipping By Container.
TEU is a professional manufacturer and supplier of 3.5 ton electric forklifts in China. Our company can also supply 1.5-10T diesel forklift truck, 1.5-5T gasoline forklift and 1.5-4T electric counterbalance forklift truck. Till now, we have established exclusive selling agencies in Australia, Russia, the United Kingdom and Northern Ireland, Korea and Iran. Our electric forklift trucks have been exported to Southeast Asia, South America, Africa and Europe.
