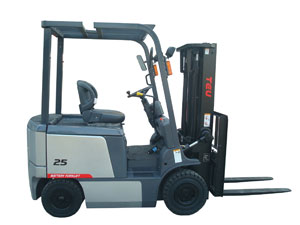

2.5T Electric Forklift

Machine Models: FB25
Capacity :2500kg

Electric Forklift

1.5T 2T 2.5T 3T 3.5T 4T

Click to enlarge

Introduction
2.5 ton electric forklift adopts storage battery to provide power. It is well suited for those areas that need high requirements of environmental protection, such as indoor place and warehouse. This electric forklift truck has non-polluting and energy-saving advantages. It adopts drive system with independent design, low noise and high efficiency. We also select imported motor and electric control units to ensure high reliability of hydraulic parts. The lemon yellow type and silver 2.5 ton electric forklift are available for customers. TEU can customize different types of electric forklift trucks according to customers' demands.

Parameters

SPECIFICATION	Item		FB15	FB20	FB25	FB30	FB35	FB40
	Load capacity	kg	1500	2000	2500	3000	3500	4000
	Load center	mm	500	500	500	500	500	500
DIMENSIONS	Max. lifting height(VM300)	mm	3000	3000	3000	3000	3000	3000
	Turning raduis(outside)	mm	1780	1980	2000	2140	2200	2450
	Overall length(without fork)	mm	1955	2245	2285	2510	2560	2810
	Total width	mm	1070	1150	1150	1225	1225	1390
	Mast height (fork lowering)	mm	1995	1995	1995	2075	2075	2150
	Height to head guard	mm	2100	2145	2145	2190	2190	2425
	Fork size (L×W×T)	mm	92010035	107012240		107012545	107012250	107015050
	Tilt range(forward/backward)	deg	6/12	6/12	6/12	6/12	6/12	6/12
	Truck weight(with standard battery)	kg	2690	3440	3820	4660	4960	5260
TIRES	front/rear		2/2	2/2	2/2	2/2	2/2	2/2
	front axle		6.00-9-10-10PR	21*8-9-16PR		28*9-15-12PR	28*9-15-14PR	250-15-16PR
	rear axle		16*6-8-10PR	18*7-8-14PR		18*7-8-14PR	18*7-8	18×7-8
DRIVE LINE	Battery	V/AH	48/400	48/450	48/565	72/480	72V-560	80V-550
	Drive motor	kw/60min	8	8	8	11	11	11
	Hydraulic motor	kw/5min	8.2	8.6	8.6	10	10	13
	Control type		Driving AC control type , lifting DC control type

Features
The truck body structure is compact. This forklift is simple and convenient to manipulate.
The getting-on pedal and suspending seat can reduce drivers' fatigue and make them feel more comfortable.
Our 2.5 ton electric forklifts have gained ISO9000 certification and CE certification.
TEU 2.5T electric forklift trucks have adequate power. After each charge, they can be operated continuously for seven hours.
Our company owns a technical development team who pursuits the best cost-effective products and provides high quality and timely service.
Self-diagnose and high accuracy sensor reminds operators for regular service and increase safety.

Attentions of 2.5 Ton Electric Forklift (FB25)
This electric forklift truck is suitable for indoor logistics transport.
Drivers who have been trained and hold driving licenses can drive this forklift.
Stable starting, steering, driving, braking and stopping are quite necessary. When we drive this 2.5 ton electric forklift on wet or slippery road, we need to slow down while steering.
Material handling should not exceed the specified load. The pallet fork should insert below the cargoes and make cargoes distribute evenly on the fork. It is prohibited to use a single fork tip to pick the cargoes.
Check each control and alarm device before driving the 2.5 ton electric forklift. If there is damage or defect, it must be operated after repair.
When this electric forklift truck loaded with material is driving, we should ensure that the cargoes are lowered and the door frame is inclined to the rear.

Packaging and Transportation
Shipping By Container.

TEU is a professional manufacturer and supplier of electric forklift trucks in China. Our company is also engaged in producing 1.5-10T diesel forklift, 2-4.5T gasoline forklift truck and 1.5-4T electric forklift. Till now, we have established exclusive selling agencies in Australia, Russia, the United Kingdom and Northern Ireland, Korea and Iran. Our 2.5 ton electric forklifts have been sold to Southeast Asia, South America, Africa and Europe.
