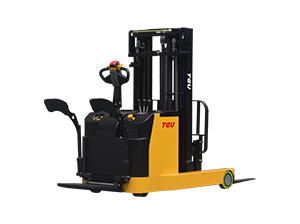

M15 Electric Reach Forklift
Click to enlarge
| Identifications | Manufacturer | TEU | ||||||
| Model | M1516 | M1518 | M1525 | M1530 | M1537 | M1545 | ||
| Drive | Electric | |||||||
| Operator type | Pedestrian | |||||||
| Load capacity | Q (t) | 1.3 | ||||||
| Load center | c (mm) | 500 | ||||||
| Front overhang | x (mm) | 367 | 356 | 368 | ||||
| Wheelbase | y (mm) | 1354 | ||||||
| Weight | Service weight (with battery) | kg | 1745 | 1750 | 1800 | 1840 | 2027 | 2110 |
| Dimensions | Tilt of mast/fork, forward/backward | a/b (°) | 3/5 | |||||
| , mast lowered | h1 (mm) | 2155 | 2355 | 1850 | 2121 | 1830 | 2095 | |
| Free lift | h2 (mm) | 0 | 0 | 0 | 0 | 1370 | 1510 | |
| Lift | h3 (mm) | 1600 | 1800 | 2500 | 3000 | 3700 | 4500 | |
| , mast extended | h4 (mm) | 2535 | 2790 | 3500 | 4040 | 4712 | 5512 | |
| of control handle at operation position, min./max. | h14 (mm) | 1050/1450 | ||||||
| , fork lowered | h13 (mm) | 50 | ||||||
| Overall length (length of fork) | l1 (mm) | 2252 (950) | ||||||
| Length of truck | l2 (mm) | 1265 | ||||||
| Overall | b1/ b2 (mm) | 1042 | ||||||
| Fork dimensions | s/e/l (mm) | 35/100/950 (1150) | ||||||
| over forks | b5 (mm) | 200-740 | ||||||
| Distance between support arm and load surface | b4 (mm) | 786 | ||||||
| Reach length | l4 (mm) | 500 | ||||||
| Ground clearance | m2 (mm) | 51 | ||||||
| Aisle : 1000 × 1200 pellets (1200 lengthways) | Ast (mm) | 2750 | 2760 | 2790 | 2790 | 2750 | 2750 | |
| Aisle : 800 × 1200 pellets (1200 lengthways) | Ast (mm) | 2800 | 2810 | 2840 | 2840 | 2800 | 2800 | |
| Turning radius | Wa (mm) | 1670 | ||||||
| Length cross support arms | l7 (mm) | 1767 | ||||||
| Others | Type of drive control | CURTIS AC | ||||||
| Noise level | (dB(A)) | 67 | ||||||
