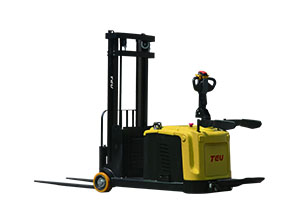

S10-15 Counterbalance Forklift
Click to enlarge
| Identification | Manufacturer | TEU | |||
| Model | S10 | S13 | S15 | ||
| Drive | Electric | ||||
| Operator ty[e | Pedestrian | ||||
| Load capactiy | Q (t) | 1 | 1.3 | 1.5 | |
| Load center | c (mm) | 500 | |||
| Front overhang | x (mm) | 150 | |||
| Wheelbase | y (mm) | 1189 | 1316 | ||
| Weight | Service weight (with battery) | kg | 1460 | 1660 | 1860 |
| Dimensions | Tilt of mast/fork, forward/backward | α/β (°) | 2/5 | ||
| , mast lowered | h1 (mm) | 1995 | |||
| Free lift | h2 (mm) | 135 | |||
| Lift | h3 (mm) | 3000 | |||
| , mast extended | h4 (mm) | 3949 | |||
| of control handle at operation position, min./max. | h14 (mm) | 1105/1440 | |||
| Overall length | l1 (mm) | 2530 | 2657 | ||
| Length of forklift | l2 (mm) | 1590 | 1717 | ||
| Overall | b1/ b2 (mm) | 998 | |||
| Fork dimensions | s/e/l (mm) | 35/100/950 | |||
| of forklift | b3 (mm) | 220-720 | |||
| Ground clearance of mast | m1 (mm) | 90 | |||
| Ground clearance of centre wheelbase | m2 (mm) | 86 | |||
| Aisle : 1000 × 1200 pellets (1200 lengthways) | Ast (mm) | 2902 | 3029 | ||
| Aisle : 800 × 1200 pellets (1200 lengthways) | Ast (mm) | 3010 | 3137 | ||
| Turning radius | Wa (mm) | 1438 | 1565 | ||
| Others | Type of drive control | AC speed control | |||
| Noise level | (dB(A)) | 70 | |||
| Steering mode | Electric | ||||
