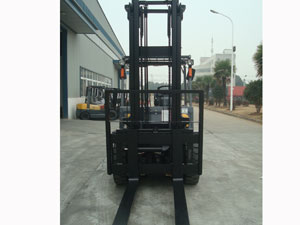

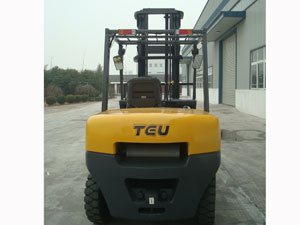

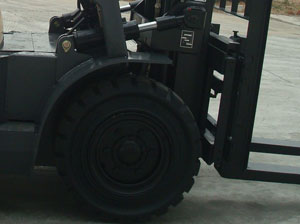

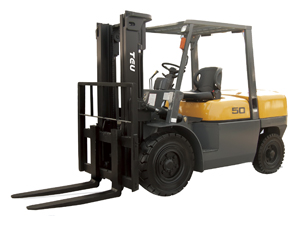

FD45T Diesel Forklift
Introduction
TEU is a professional manufacturer of diesel forklift trucks in China. 4.5T diesel forklift is designed to meet the operation requirements of high productivity indoor materials. It is quite famous for its clean power, excellent commensurability and superior performance. This forklift truck is usually used for lifting and stacking cargoes. It is configured with diesel engine that has the advantages of good power performance, strong overload ability, powerful long-time working capacity and low fuel charge. Our company is also engaged in producing 1.5T, 2T, 2.5T, 4T, 4.5T and 5T diesel forklift, 1.5-10T gasoline forklift truck and 1.5-4T electric forklift. Till now, we have established exclusive selling agencies in Australia, Russia, the United Kingdom and Northern Ireland, Korea and Iran. Our 4.5T diesel forklifts have been sold to Southeast Asia, South America, Africa and Europe.
SPECIFICATION | Item | FD45T | FD50TS | FD50TF | |
Load capacity | kg | 4500 | 5000 | 5000 | |
Load center | mm | 600 | 500 | 600 | |
DIMENSIONS | Max. lifting height | mm | 3000 | 3000 | 3000 |
Free lift | mm | 140 | 140 | 140 | |
Fork size | mm | 1220*150*50 | 1070*150*50 | 1220*150*60 | |
Overall length(without fork) | mm | 3100 | 3100 | 3183 | |
Total width | mm | 1485 | 1485 | 1485 | |
Mast height (fork lowering) | mm | 2300 | 2300 | 2390 | |
Overall height fork raised | mm | 4190 | 4190 | 4295 | |
Height to head guard | mm | 2270 | 2270 | 2270 | |
Truck weight | kg | 7230 | 7230 | 7830 | |
TIRES | front/rear |
|
2/2 | 2/2 | 2/2 |
front axle |
|
300-15-18PR | 300-15-18PR | 300-15-18PR | |
rear axle |
|
7.00-12-12PR | 7.00-12-12PR | 7.00-12-12PR | |
ENGINE | Model |
|
Mitsubishi S6S | Chinese 4108 | Mitsubishi S6S |
Rated power | kw/rpm | 52/2300 | 57/2200 | 52/2300 | |
Rated torque | Nm/rpm | 248/1700 | 297/1600 | 248/1700 | |
Number of cylinders |
|
6 | 4 | 6 | |
Dislacement | L | 4.996 | 4.578 | 4.996 |
Optional Engines
FD45T,FD50TS,FD50TF: Chinese 4108,Mitsubishi S6S
- Advantages
- This 4.5 ton diesel forklift truck can match several diesel engines, which is convenient for customers to select.
- Our company owns an innovative technology development team. Compared with other similar products, our 4.5T diesel forklifts enjoy the advantages of excellent performance and technology merits. They have gained ISO9000 and CE certificates.
- The body is firm and is processed through sand blasting, baking finish and other technologies to enhance its rust resistant performance.
- This diesel forklift truck is equipped with a cyclone air filter which can filter tiny dust and improve air quality. Even in a dusty environment, our truck engines are protected from getting damaged and could perform as well as usual.
- TEU 4.5T diesel forklift is designed with simple and reliable shock absorption.

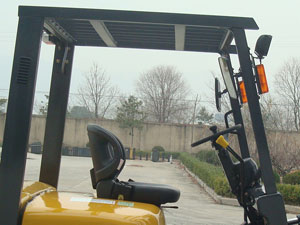

- This mid-sized capacity forklift truck possesses humanized hydraulic joystick and adjustable steering wheel. Drivers will not feel fatigue even after long-time work.
Main Components of 4.5T Diesel Forklift Truck
Engine | It is the power unit of the forklift truck, which converts thermal energy into mechanical energy. |
Transmission Gear | It includes clutch, transmission, main transmission, differential mechanism, axle shaft, etc. |
Operating Control | It consists of steering mechanism and brake system. |
Working Device | It includes inside and outside door frame, fork mounting, pallet fork, lifting chain, roller, pulley and other parts. Its role is to lift or stack cargoes. |
Hydraulic System | It includes fuel tank, hydraulic pump, distributor, lifting hydraulic cylinder and tilt cylinder. It can realize lifting and tilting of cargoes. |
Electric System | It consists of power section and the electric part, such as storage battery, alternator, starter motor, ignition device, illumination device and loudspeaker. |
- Attentions of 4.5T Diesel Forklift Truck
- Customers need to fully know the working environment, maximum load and the maximum lifting height of the 4.5T diesel forklift and then choose appropriate models and configurations.
- Drivers who have been trained and hold driving license can drive this forklift.
- Check each control and alarm device before driving this FD35T diesel forklift truck. If there is damage, it must be operated after repair.
- Material handling should not exceed the specified load. It is prohibited to use a single fork tip to pick the cargoes.
- Stable starting, steering, driving, braking and stopping are quite necessary. When we drive the 4.5T diesel forklift on wet or slippery road, we need to slow down while steering.
- When the FD35T diesel forklift loaded with material is driving, we should ensure that the cargoes are lowered and the door frame is inclined to the rear.
- Customers need to pay attention to daily maintenance of diesel forklift trucks.
Packaging and Transportation
Shipping By Container.
