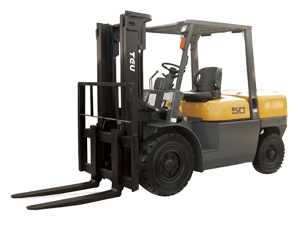

FD50TF Diesel Forklift Truck
Introduction
5 ton diesel forklift truck is equipped with an electronically-controlled diesel engine that meets Tier 300-15-18PR emission control regulations. It is well known for clean power, excellent commensurability and superior performance. This counterbalance forklift truck is often used for lifting and stacking cargoes. The diesel engine has the advantages of good power performance, strong overload ability, powerful long-time working capacity and low fuel charge.
SPECIFICATION | Item | FD45T | FD50TS | FD50TF | |
Load capacity | kg | 4500 | 5000 | 5000 | |
Load center | mm | 600 | 500 | 600 | |
DIMENSIONS | Max. lifting height | mm | 3000 | 3000 | 3000 |
Free lift | mm | 140 | 140 | 140 | |
Fork size | mm | 1220*150*50 | 1070*150*50 | 1220*150*60 | |
Overall length(without fork) | mm | 3100 | 3100 | 3183 | |
Total width | mm | 1485 | 1485 | 1485 | |
Mast height (fork lowering) | mm | 2300 | 2300 | 2390 | |
Overall height fork raised | mm | 4190 | 4190 | 4295 | |
Height to head guard | mm | 2270 | 2270 | 2270 | |
Truck weight | kg | 7230 | 7230 | 7830 | |
TIRES | front/rear |
|
2/2 | 2/2 | 2/2 |
front axle |
|
300-15-18PR | 300-15-18PR | 300-15-18PR | |
rear axle |
|
7.00-12-12PR | 7.00-12-12PR | 7.00-12-12PR | |
ENGINE | Model |
|
Mitsubishi S6S | Chinese 4108 | Mitsubishi S6S |
Rated power | kw/rpm | 52/2300 | 57/2200 | 52/2300 | |
Rated torque | Nm/rpm | 248/1700 | 297/1600 | 248/1700 | |
Number of cylinders |
|
6 | 4 | 6 | |
Dislacement | L | 4.996 | 4.578 | 4.996 |
Optional Engines
FD45T,FD50TS,FD50TF: Chinese 4108,Mitsubishi S6S
- Features
- This 5T counterbalance forklift truck can match with various diesel engines. It is convenient for customers to select.
- Integration of the operating system contributes to simple operation.
- Ergonomic design of the 5 ton diesel forklift truck ensures best operation.
- Built-in tilt cylinder makes it have much wider driving space.
- Wide view mast design improves the productivity and safety of this counterbalance forklift truck.
- Energy-saving hydraulic system decreases fuel consumption.
Components
5 ton diesel forklift truck mainly consists of engine, transmission, operating control device, working device, hydraulic system and electric system. The working device includes inside and outside door frame, fork mounting, pallet fork, lifting chain, roller, pulley and other parts. Its role is to lift or stack cargoes. The hydraulic system includes fuel tank, hydraulic pump, distributor, lifting hydraulic cylinder and tilt cylinder. Our 5 ton diesel forklifts can realize lifting and tilting of cargoes.
Packaging and Transportation
Shipping By Container.
Anhui TEU Forklift Co., Ltd. is a specialized manufacturer and supplier of 5 ton diesel forklift trucks in China. We can supply 1.5-10T diesel forklift, 1.5-5T gasoline forklift and 1.5-4T electric forklift for customers. TEU possesses vehicle assembly lines, painting lines, standard test sites and various testing and detection equipment and facilities. We have established perfect quality management system to dominate the process of design and development, purchase, raw material inspection, defective goods, manufacture and service. Our 5 ton diesel forklifts are highly appraised by customers. We are able to produce counterbalance forklift trucks according to the requirements of different markets and customers.
