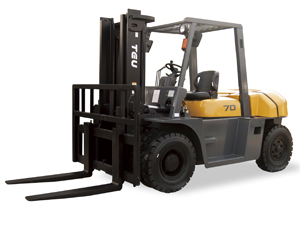

8T Diesel Forklift Truck
Description
TEU 8T diesel forklift truck is very famous for its good stability and flexible utility. It is often used to lift and transport cargoes in the outdoors. Compared with gasoline engine, diesel engine possesses the advantages of better power performance and low fuel charge. The engine is not easy to flame out even at low speed. It owns strong overload capacity and long-term working capacity. With stable performance and economic price, our 8T diesel forklift trucks are ideal for port, railway system, iron and steel making industry, coal mine, and so forth.
| SPECIFICATION | Item | FD50T | FD60T | FD70T | FD80T | FD100T | |
| Load capacity | kg | 5000 | 6000 | 7000 | 8000 | 10000 | |
| Load center | mm | 600 | 600 | 600 | 600 | 600 | |
| DIMENSIONS | Max. lifting height | mm | 3000 | 3000 | 3000 | 3000 | 3000 |
| Free lift | mm | 205 | 205 | 210 | 205 | 205 | |
| Fork size | mm | 1220*150*60 | 1220*150*60 | 1220*150*65 | 1220*170*75 | 1220*175*75 | |
| Overall length(without fork) | mm | 3455 | 3530 | 3590 | 3740 | 4255 | |
| Total width | mm | 1995 | 1995 | 1995 | 1995 | 2245 | |
| Mast height (fork lowering) | mm | 2500 | 2500 | 2500 | 2625 | 2850 | |
| Overall height fork raised | mm | 4420 | 4420 | 4420 | 4545 | 4330 | |
| Height to head guard | mm | 2450 | 2450 | 2450 | 2450 | 2560 | |
| Truck weight | kg | 8050 | 8750 | 9450 | 10450 | 12450 | |
| TIRES | front/rear |
|
4/2 | 4/2 | 4/2 | 4/2 | 4/2 |
| front axle |
|
8.25x15-14PR | 8.25x15-14PR | 8.25x15-14PR | 8.25x15-14PR | 9.00x20-14PR | |
| rear axle |
|
8.25x15-14PR | 8.25x15-14PR | 8.25x15-14PR | 8.25x15-14PR | 9.00x20-14PR | |
| ENGINE | Model |
|
ISUZU 6BG1 | Chaochai 6102 | Mitsubishi S6S-T | Chaochai 6102 | ISUZU 6BG1 |
| Rated power | JIS PS | 112/2000 | 110/2500 | 63.9/2300 | 110/2500 | 112/2000 | |
| Rated torque | JIS kg-m | 42.5/1500 | 36/1650 | 28.5/1700 | 36/1650 | 42.5/1500 | |
| Number of cylinders |
|
6 | 6 | 4.9 | 6 | 6 | |
| Dislacement | L | 6.494 | 5.785 | 6 | 5.785 | 6.494 | |
Optional Engines
5.0T-7.0T: Chinese 6102, Chinese 6110,Isuzu 6BG1,Mitsubishi S6S-T
8.0T-11.5T: Chinese 6110,Isuzu 6BG1
- Advantages
- TEU 8 ton diesel powered forklift trucks have gained the ISO9000 and CE certifications.
- Our company has an innovative team who pursuit the best performance. We also provide high-quality and timely service.
- 8T diesel forklift trucks produce more drive torque at low RPM when compared with electric forklifts.
- Rearward visibility is better compared to propane forklifts.
- Compared with electric forklifts, diesel powered forklift trucks have a lower total cost of ownership.
- TEU 8T diesel forklift truck has a longer engine life.
- Features
- Integrated control system makes this diesel counterbalance truck easier to manipulate.
- Built-in tilt cylinder makes the driving space much wider.
- This diesel powered forklift trucks can match with different kinds of engines, which provides multiple choices for customers.
- 8T diesel forklift truck is a perfect combination of many quality parts. It has an elegant appearance.
- It adopts new hydraulic gear box and high torsion transmission system.
- Front dual wheel design enhances the operation safety of the diesel powered forklift truck.
- This internal combustion forklift truck comes with external double-filtration air cleaner to ensure the clean air supply of the engine.
Configurations of 8T Diesel Forklift Truck (FD80T)
The standard configurations of this diesel forklift include hour meter, oil pressure alarm, hydraulic filter, lamp guard, charge director, backup buzzer, hydraulic steering, standard fork, drawbar pin, horn, backup alarm, rear working light, engine, awning and standard seat.
Main Parts of FD80T Diesel Powered Forklift Truck
| Engine | It is the power unit of the forklift truck, which converts heat energy into mechanical energy. |
| Transmission Gear | It includes clutch, transmission, main transmission, differential mechanism, axle shaft, etc. |
| Operating Control | It consists of steering mechanism and brake system. |
| Working Device | It includes inside and outside door frame, fork mounting, pallet fork, lifting chain, roller, pulley and other parts. Its role is to lift or stack cargoes. |
| Hydraulic System | It includes fuel tank, hydraulic pump, distributor, lifting hydraulic cylinder and tilt cylinder. It can realize lifting and tilting of cargoes. |
| Electric System | It consists of power section and the electric part, such as storage battery, alternator, starter motor, ignition device, illumination device and loudspeaker. |
- Attentions of 8T Diesel Powered Forklift Truck
- Customers need to fully know the working environment, the maximum load and the maximum lifting height of the 8T diesel forklift truck and then choose appropriate models and configurations.
- Check each control and alarm device before driving the forklift. If there is damage or defect, it must be operated after repair.
- Drivers who have been trained and hold driving license can drive this diesel powered forklift truck.
- Stable starting, steering, driving, braking and stopping are quite necessary. When we drive the 8T diesel forklift truck on wet or slippery road, we need to slow down while steering.
- Material handling should not exceed the specified load. The pallet fork should insert below the cargoes and make cargoes distribute evenly on the fork. It is prohibited to use a single fork tip to pick the cargoes.
- When the 8T diesel forklift truck loaded with material is driving, we should ensure that the cargoes are lowered and the door frame is inclined to the rear.
- Customers need to pay attention to daily maintenance of this 8 ton diesel powered forklift truck.
Packaging and Transportation
Shipping By Container.
