25 Ton Heavy Duty Diesel Forklift Truck
Click to enlarge
| Performance | Rated load | 25000 | ||
| Load center | 1250 | |||
| Mast tilt angle (front/rear) | º | 6/12 | ||
| Overall dimensions | Length | mm | 9190 | |
| mm | 3050 | |||
| mm | 3510 | |||
| Mast lifting | mm | 3500 | ||
| Free lift | mm | 1850 | ||

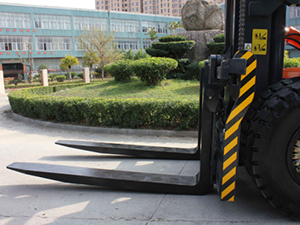

| Fork size (L × W × H) | mm | 2440 × 300 × 110 | ||
| Min. turning radius | mm | 6700 | ||
| Max. travel speed (with load) | km/h | 28 | ||
| Lifting speed (with load) | mm/s | 260 | ||
| Gradeability (with load) | % | 20 | ||
| Weight | kg | 35000 | ||

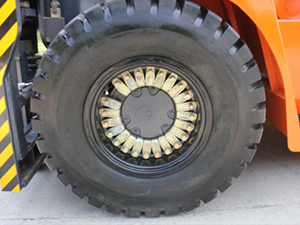

| Tyre | Front | 4 × 14.00-24/28PR | ||
| Rear | 2 × 14.00-24/28PR | |||
| Wheel tread | Front | mm | 2200 | |
| Rear | mm | 2390 | ||
| Wheelbase | mm | 4400 | ||
| Min. ground clearance | mm | 250 | ||
| Engine | Model | WP10G220E343 | ||
| Rated power/rotate speed | kW/r.pm | 162/2000 | ||
| Max. torque/rotate speed | N.m/r.pm | 980/1500 | ||
