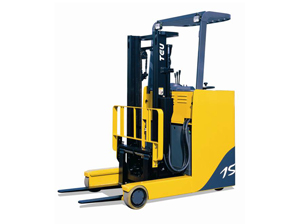

1.8T Electric Reach Forklift
Description
1.8T reach forklift is essential equipment in modern logistics system. It is designed to replace the Japanese forward type battery forklift. Electric forklift truck is widely used in various warehouse, workshop, large store and supermarket. It features free maintenance and low failure rate.
| Specification | Item | FRB15 |
FRHB15 |
FRB18 |
FRHB18 |
|
| Load capacity | kg |
1500 |
1800 |
|||
| Load center | mm |
500 |
||||
| Dimensions | Max. lifting height (VM300) | mm |
3000 |
4000 |
3000 |
4000 |
| Turning radius (outside) | mm |
1580 |
1760 |
|||
| Total width | mm |
1090 |
||||
| Mast height (fork lowering) | mm |
1995 |
2495 |
1995 |
2495 |
|
| Height to head guard | mm |
2260 |
||||
| Fork size (L×W×T) | mm |
920 × 100 × 35 |
920 × 100 × 38 |
|||
| Tilt range (forward/backward) | deg |
3°/5° |
||||
| Truck weight (without battery) | kg |
1735 |
1725 |
1825 |
1905 |
|
| Tires | Number | front/rear |
2/1X+2 (X=driving wheel) |
|||
| Size | Front, load |
Ф254 × 120 |
||||
Rear, drive |
Ф330 × 145 |
|||||
Rear, steering |
Ф178 × 73 |
|||||
| Drive Line | Battery | V/AH |
48/280 |
|||
| Drive motor | kw/60min |
4.6 |
||||
| Hydraulic motor | kw/5min |
8.2 |
||||
| Steering motor | kw/60min |
0.3 |
||||
Distinctive Components
Motor System
1. Motor system of reach forklift sets three no-load speed modes includes super mode, normal mode and economic mode with the respective speed of 11km/h, 9km/h and 6km/h. Parameters like driving speed, accelerated speed and brake motor can be adjusted according to different requirements from customers. In addition, the climbing performance will not be affected.
2. Electric forklift truck adopts AC walking motor from famous brand which combined advanced American technology (FB15 walking motor from that supplier performs well and the failure rate is zero so far).
3. Both encoder and temperature sensor of reach forklift are imported from American famous brand Honeywell. Thus the reliability of electric motor can be assured.
4. Electric motor has excellent braking performance. It is able to greatly reduce the abrasion degree of brake block during working process.
Electric Control System
1. Controller
Both walking and hydraulic controller adopt 1234 series AC controller and 1253 series adjustable speed DC pump controller from mature and leading brand Curtis.
2. Instrument
Reach forklift adopts the latest version of storage battery meter which is specially designed by Curtis. More messages like speed, working time, power, fault code and warning light can be obtained. Handheld terminal has upgraded to 1313-4401 model, which makes it convenient for checking the current situation of electric forklift, battery voltage, motor and current, directional signal, failure message, historical fault information, etc. TEU can provide more detailed technical support according to different requirements.
3. EPS Power Steering System
EPS is the highlight of 1.8T reach forklift. Compared to hydraulic power steering, EPS power steering system features low noise, low energy consumption, mature technology and stable operating performance. EPS system can be worked as independent electrical system which is free from interference of other electrical components. TEU reach forklift has been more closed to the Japanese technical level of similar products.
4. Hydraulic System
Important parts of hydraulic system adopt multitandem valve and low noise pump from famous Japanese brand Shimadzu. High pressure oil pump of reach forklift is imported from world famous brand EATON.
Founded in February 2007, Anhui TEU Forklift Co., Ltd. is a professional manufacturer and supplier of reach forklift in China. Our electric forklift trucks have obtained ISO9001 quality system certificate, special equipment manufacturing license, CE certificate and SGS certificate.
