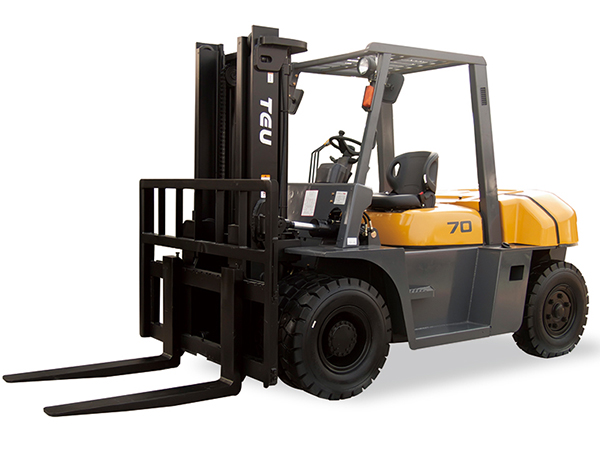

5-10t Diesel Forklift
- Description
- Specifications
Description
TEU 5-10T diesel forklift has been proved to be powerful, safe and durable by our customers. Our forklifts use ISUZU engine and excellent hydraulic system. This counterbalance forklift truck includes five types of forklifts including FD50T, FD60T, FD70T, FD80T and FD100T models. They meet the world's latest emission control regulations and the load handling interlock system ensures safe operation of the truck.
Characteristics of 5-10T Diesel Forklift
The pressure limiting valve is used for preventing misoperation and reducing damage to the hydraulic system.

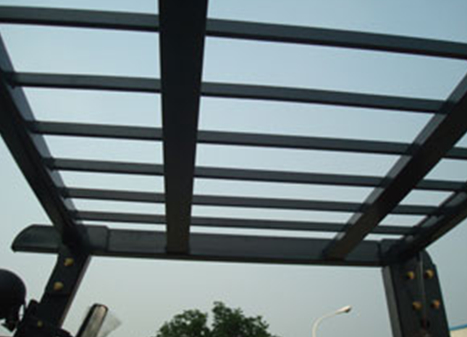

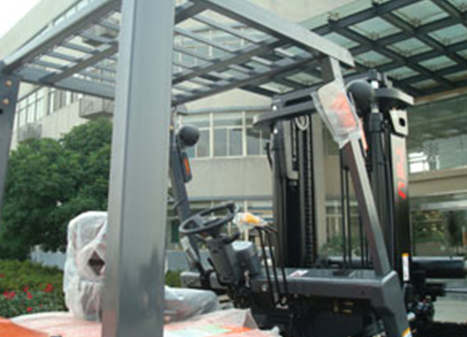

Designed with skylight, the driver's cab of this counterbalance forklift truck is spacious and bright, and offers good view and great comfort.
The use of detachable rear counterweight not only reduces early wear of tyres, but also allows 5-10T diesel forklifts to serve multiple purposes.
The high magnification ratio brake system makes it meet the heavy-duty braking needs.
5.0T-7.0T: Chinese 6102, Chinese 6110,Isuzu 6BG1,Mitsubishi S6S-T
8.0T-11.5T: Chinese 6110,Isuzu 6BG1
Packaging and Transportation
Shipping By Container.
TEU 5-10T diesel forklift has been proved to be powerful, safe and durable by our customers. Our forklifts use ISUZU engine and excellent hydraulic system. This counterbalance forklift truck includes five types of forklifts including FD50T, FD60T, FD70T, FD80T and FD100T models. They meet the world's latest emission control regulations and the load handling interlock system ensures safe operation of the truck.
Characteristics of 5-10T Diesel Forklift
The pressure limiting valve is used for preventing misoperation and reducing damage to the hydraulic system.
Designed with skylight, the driver's cab of this counterbalance forklift truck is spacious and bright, and offers good view and great comfort.
The use of detachable rear counterweight not only reduces early wear of tyres, but also allows 5-10T diesel forklifts to serve multiple purposes.
The high magnification ratio brake system makes it meet the heavy-duty braking needs.
This type of counterbalance forklift truck works under hydraulic control.
5.0T-7.0T: Chinese 6102, Chinese 6110,Isuzu 6BG1,Mitsubishi S6S-T
8.0T-11.5T: Chinese 6110,Isuzu 6BG1
Packaging and Transportation
Shipping By Container.
| SPECIFICATION | Item | FD50T | FD60T | FD70T | FD80T | FD100T | |
| Load capacity | kg | 5000 | 6000 | 7000 | 8000 | 10000 | |
| Load center | mm | 600 | 600 | 600 | 600 | 600 | |
| DIMENSIONS | Max. lifting | mm | 3000 | 3000 | 3000 | 3000 | 3000 |
| Free lift | mm | 205 | 205 | 210 | 205 | 205 | |

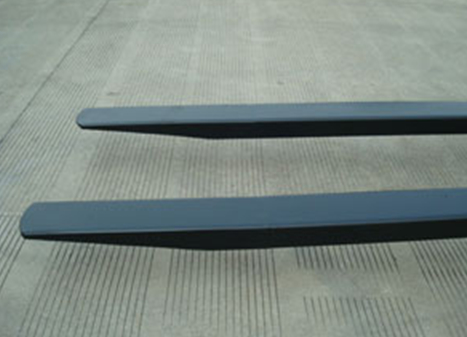

| Fork size | mm | 1220*150*60 | 1220*150*60 | 1220*150*65 | 1220*170*75 | 1220*175*75 | |
| Overall length(without fork) | mm | 3455 | 3530 | 3590 | 3740 | 4255 | |
| Total | mm | 1995 | 1995 | 1995 | 1995 | 2245 | |
| Mast (fork lowering) | mm | 2500 | 2500 | 2500 | 2625 | 2850 | |
| Overall fork raised | mm | 4420 | 4420 | 4420 | 4545 | 4330 | |
| to head guard | mm | 2450 | 2450 | 2450 | 2450 | 2560 | |
| Truck weight | kg | 8050 | 8750 | 9450 | 10450 | 12450 | |
| TIRES | front/rear | 4/2 | 4/2 | 4/2 | 4/2 | 4/2 | |
| front axle | 8.25x15-14PR | 8.25x15-14PR | 8.25x15-14PR | 8.25x15-14PR | 9.00x20-14PR | ||
| rear axle | 8.25x15-14PR | 8.25x15-14PR | 8.25x15-14PR | 8.25x15-14PR | 9.00x20-14PR | ||
| ENGINE | Model | ISUZU 6BG1 | Chaochai 6102 | Mitsubishi S6S-T | Chaochai 6102 | ISUZU 6BG1 | |
| Rated power | JIS PS | 112/2000 | 110/2500 | 63.9/2300 | 110/2500 | 112/2000 | |
| Rated torque | JIS kg-m | 42.5/1500 | 36/1650 | 28.5/1700 | 36/1650 | 42.5/1500 | |
| Number of cylinders | 6 | 6 | 4.9 | 6 | 6 | ||
| Dislacement | L | 6.494 | 5.785 | 6 | 5.785 | 6.494 | |
