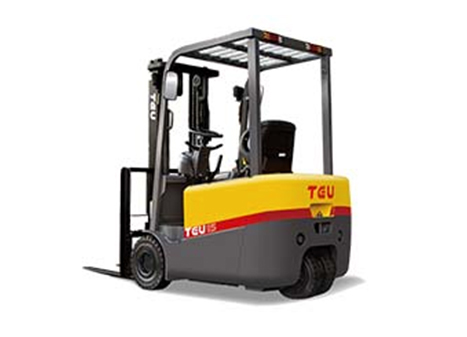

3-Wheel Electric Forklift (1.5-2.0t)
- Description
- Specifications
TEU can produce 1.5-2.0T electric three-wheel forklift trucks for customers. The electric forklift Powered by storage battery, the electric forklift truck is suitable for areas that have high requirements on environmental protection, such as indoor place and warehouses. This three-wheel forklift truck is non-polluting and energy-saving. It adopts drive system with independent design, low noise and high efficiency. This 3 wheel electric truck is also equipped with imported motor and electric control units to ensure high reliability of its hydraulic parts. Our company can also customize various electric forklift trucks according to customers' requirements. Lemon yellow or silver color is available for customers.
Performance
1. This three-wheel forklift truck enjoys compact structure, and it is easy and convenient to operate.

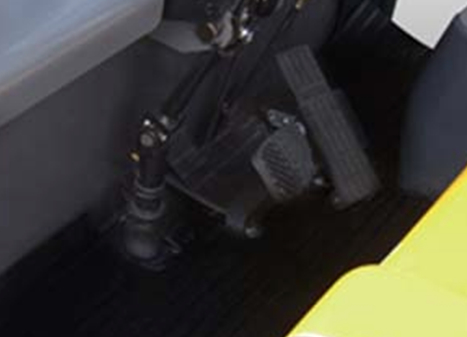

2. This 3 wheel electric truck is equipped with pedals and suspending seat, which can reduce operators' fatigue and make them feel comfortable.
3. Three operation modes are available for users to choose from.
4. This electric forklift truck can operate around 7 hours if sufficiently charged.
5. AC motor and AC controller with excellent performance.
6. 24-hour after-sales service and a full set of accessories are available.
Specification | 1 | Model | FTB15 | FTB18 | FTB20 | |||
2 | Load capacity | kg | 1500 | 1800 | 2000 | |||
3 | Load Center | mm | 500 | 500 | 500 | |||
4 | Power Supply | Battery | Battery | Battery | ||||
5 | Operator type | Driver/seat | Driver/seat | Driver/seat | ||||
6 | Tire type | front/rear | Solid | Solid | Solid | |||
7 | Wheels(X=driven) | front/rear | 2X/2 | 2X/2 | 2X/2 | |||
DIMENSIONS | 8 | Max.lifting | mm | 3000 | 3000 | 3000 | ||
9 | Free lift | mm | 110 | 110 | 110 | |||
10 | Fork size(L*W*T) | mm | 920 × 100 × 35 | 920 × 100 × 35 | 1070 × 122 × 40 | |||
11 | Length(without fork) | mm | 1785 | 1895 | 1960 | |||
12 | mm | 1054 | 1054 | 1100 | ||||
Weights | 13 | Weight | with standard battery | kg | 2960 | 3080 | 3450 | |
Chassis & Wheels | 14 | Tires | Number | front/rear | 2/2 | 2/2 | 2/2 | |
15 | Size | front | 18×7-8 | 18×7-8 | 200/50-10 | |||
rear | 15×4.5-8 | 15×4.5-8 | 140/55-9 |
