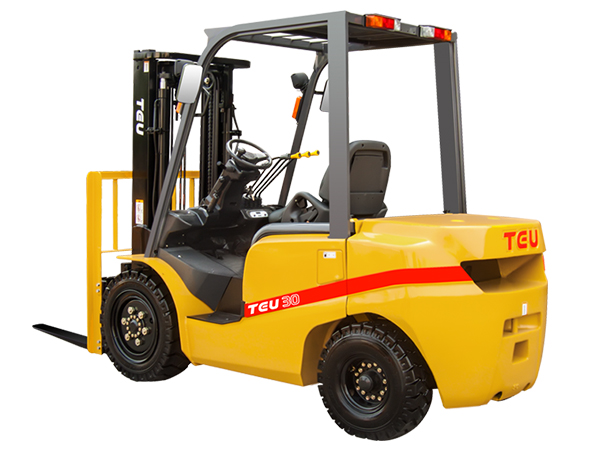

17 Series Forklift (2.0-4.0t)
- Description
- Specifications
Description
Second to None, Revolutionary Forklift Trucks Freshly Debuted Succeeding TEU’s traditional products concepts of superb performance and quality, we hereby announce a new type of forklift truck,offering incomparable ruggedness and operator-friendly features. It’s the newly debuted EFFO17.TEU has fully upgraded and redesigned EFFO17 for easier access, greater comfort,improved maneuverability,assured safety, and longer durability, thanks to TEU’s outstanding technological expertise and strengths, the EFFO17 forklift truck achieves optimum performance for its class while providing outstanding comfort and safety.
Advantages of 17 Series Forklift Truck (2.0-4.0T)
●Reliable parking lever
●Expansive floor space for easier foot maneuvering
●Easier entry and exit from an extra-wide step----55% wider
●Multifunctional suspension seat
●Effective hydraulic system

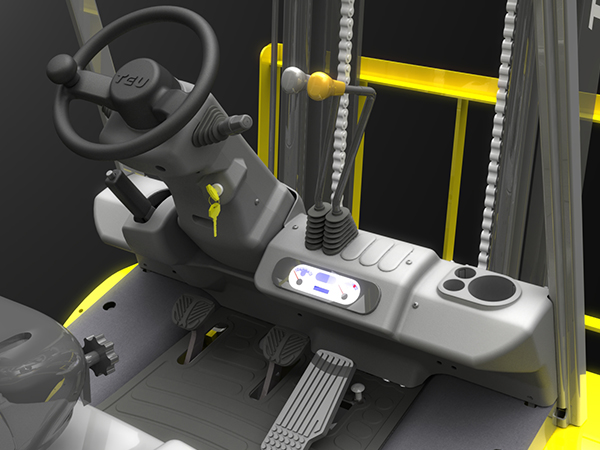

●Compact steering wheel to reduce fatigue due to a semi-circular steering wheel
●Meter panel optimally located to the right of the driver’s seat
●Single-piece headguard
●High-mounted rear combination lights
●Wider forward visibility
Attentions
The customers should fully know the working environment, the maximum load and the maximum lifting height of the forklift truck, and then choose the appropriate model and configurations.
Packaging and Transportation
shipping by container
Item | FD/G20 | FD/G25 | FD/G30 | FD/G35 | FD/G40 | ||||
Max. lift (VM300) | mm | 3000 | |||||||
Free lift (VM300) | mm | 160 | 160 | 150 | 150 | 150 | |||
Overall length (with fork) | mm | 3530 | 3600 | 3775 | 3830 | 3940 | |||
Total | mm | 1150 | 1150 | 1225 | 1285 | 1365 | |||
Mast (fork lowering) | mm | 1995 | 1995 | 2075 | 2075 | 2150 | |||
to head guard | mm | 2120 | 2120 | 2140 | 2140 | 2140 | |||
Front track | mm | 970 | 970 | 1000 | 1060 | 1120 | |||
Rear track | mm | 970 | 970 | 970 | 970 | 970 | |||
Turning radius (inside) | mm | 160 | 160 | 200 | 200 | 200 | |||
Turning radius (outside) | mm | 2170 | 2240 | 2445 | 2495 | 2530 | |||
Right angle turning aisle | mm | 1920 | 2010 | 2155 | 2205 | 2450 |
